Product Introduction
Product Features
Dual Mode Focusing Trap

To improve the resolution of early eluting molecules, CDS adopts pre-desorb and pre-heat technique along with Peltier cooling to mechanically and chemically confine analytes on the analytical trap to improve focusing

Finite Elemenet.jpg
Automated IS Addition

Automatically and reproducible add internal standard from a 5mL loop up to 10 times

internal standard.jpg
SLA5850-RS485-RevB-mass-flow-controller-
Pre-Trap Sample Split

Reproducibly split up to 99% of sample using a dual-channel mass flow controller to prevent overloading of the focusing trap

automated sample saver.jpg
Automated Sample Saver

Chose to recollect a fraction of sample on the original TD tube for high priority customer samples, replicates, or method validation

built in method.jpg
Pre-Loaded Method Library

Select from a pre-loaded method library to support a variety of applications such regulatory, dirty samples, tube conditioning, troubleshooting, and more

leak check.jpg
Leak Checking for Hydrogen

Select hydrogen as a GC carrier gas for expanded leak check for each sample as an added safety precaution when using hydrogen

Product Features
Product Introduction
Specifications:

TD Tube Positions:
Tube Supported:
Concentrator:
Focus Trap:
Pre-Desorb Pre-Heat:
Peltier:
Tube Heating Rate:
Trap Heating Rate:
Valve Oven:
Transfer Line:
Sample Desorb:
Focus Desorb:
GC Connection:
Internal Standard:
Pre-Trap Sample Split:
Automated Sample Saver:
Sample Saver Desorb:
Weight:
Dimension (W x H x D):

72
1/4" X 3.5" Or 6 mm X 4.5"
Built-in
Low Thermal Mass Vocarb
Yes, Standard
Yes, to -20°C
1000°C/min
900°C/min
Up to 300°C
Up to 350°C
Up to 400°C
Up to 400°C
Heated Transfer Line
Yes
Yes, 50-99%
Yes
Up to 400°C
23 kg
56.9cm X 48.2cm X 62.2cm

Summary

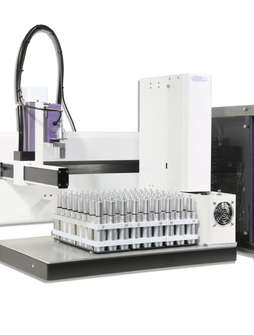

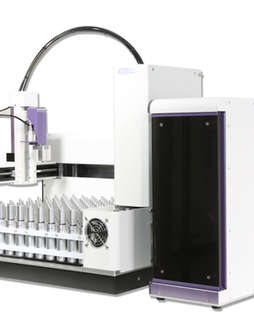

The CDS 7550S Pro is a stand-alone 72 position Thermal Desorption Autosampler for Thermal Desorption - Gas Chromatography - Mass Spectrometry (TD-GC-MS) in the analytical lab. Built on the 2nd generation autosampler platform, the CDS 7550S Pro come fully equipped with an electronically cooled Peltier focusing trap, automated internal standard addition, pre-trap sample splitting, and automated saver capabilities. The CDS 7550S Pro is capable of 3D positioning within 1 mm, and thanks to its unique custom calibration, it can handle 3.5" standard Thermal Desorption tubes from any manufacturer. These features make CDS 7550 the most reliable Thermal Desorption autosampler available to the market.

Applications
Applications
Category
Description
Part Number
Instrument
7550S Pro Thermal Desorption Autosampler with Concentrator 3.5" Tube
7551-5046(115V)/7551-5047(220V)
Option
Single Channel Air Sampler
1010-0573
Parts
1/8" SS Trap, packed with Tenax - TA 60:80 mesh - 4 1/2" Long
9301-5056
Parts
Kalrez o-ring, bottom tube heater seal
1620-0493
Parts
1/4"x3.5" Thermal Desorption Tube, Unconditioned, and Tenax TA 60:80
SU60520-60
Parts
1/8" SS Trap, Vocarb - 4 1/2" Long
9301-5055
Parts
7550/7550S Top Tube Seal Septum with Hole
7503-1001
Parts
Valve Rotor for Stright 8 Port Valve
2460-0247
Parts
1/4" x 3.5" Thermal Desorption Tube, Carbograph2 / Carbograph1 / Carboxen 1000
SU644-4
Parts & Options
